Stark strippers

e: 1543

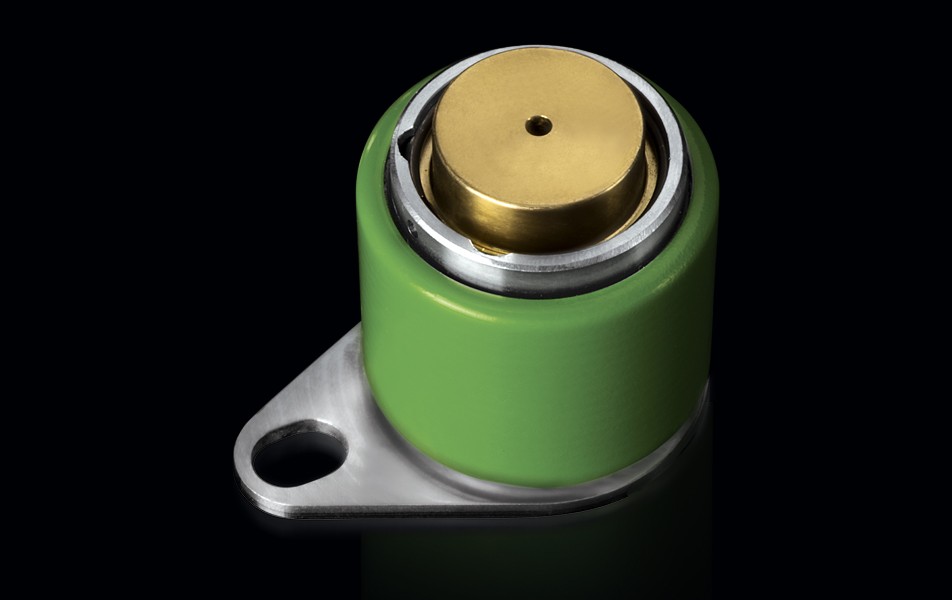

Stark strippers are designed to be mount directly to most industry standard retainers, for both Ballock (Light-Heavy Duty) and headed punches, which allow the extraction of the punch from the metal sheet, providing strength and security with minimum dimensions. These strippers, thanks to the high quality of the polyurethane EFFEBE rubber, not only increase the punch life supporting its tip and dampening the vibrations during drilling stage, but also allow to reduce the setup time and maintenance. The inserts made in BRAL, which vary according to the length of the punch, are easily interchangeable, machinable and equipped with an anti-rotation system.

Jsi v: Produkty - Stark strippers

What are you looking for?
Name
Last edit
1101 - STARK STRIP
05/04/2024

Download STEP - 1101.0010 + 8058.1010.002
Download STEP - 1101.0010 + 8058.1020.001
Download STEP - 1101.0010 + 8058.1020.002
Download STEP - 1101.0010 + 8058.1030.001
Download STEP - 1101.0010 + 8058.1030.002
Download STEP - 1101.0010 + 8058.1040.001
Download STEP - 1101.0010 + 8058.1040.002
Download STEP - 1101.0010 + 8058.1050.002
Download STEP - 1101.0010
Download STEP - 1101.0013 + 8058.1310.002
Download STEP - 1101.0013 + 8058.1320.001
Download STEP - 1101.0013 + 8058.1320.002
Download STEP - 1101.0013 + 8058.1330.001
Download STEP - 1101.0013 + 8058.1330.002
Download STEP - 1101.0013 + 8058.1340.001
Download STEP - 1101.0013 + 8058.1340.002
Download STEP - 1101.0013 + 8058.1350.002
Download STEP - 1101.0013
Download STEP - 1101.0016 + 8058.1610.002
Download STEP - 1101.0016 + 8058.1620.001
Download STEP - 1101.0016 + 8058.1620.002
Download STEP - 1101.0016 + 8058.1630.001
Download STEP - 1101.0016 + 8058.1630.002
Download STEP - 1101.0016 + 8058.1640.001
Download STEP - 1101.0016 + 8058.1640.002
Download STEP - 1101.0016 + 8058.1650.002
Download STEP - 1101.0016
Download STEP - 1101.0020 + 8058.2010.002
Download STEP - 1101.0020 + 8058.2020.001
Download STEP - 1101.0020 + 8058.2020.002
Download STEP - 1101.0020 + 8058.2030.001
Download STEP - 1101.0020 + 8058.2030.002
Download STEP - 1101.0020 + 8058.2040.001
Download STEP - 1101.0020 + 8058.2040.002
Download STEP - 1101.0020 + 8058.2050.002
Download STEP - 1101.0025 + 8058.2510.002
Download STEP - 1101.0025 + 8058.2520.001
Download STEP - 1101.0025 + 8058.2520.002
Download STEP - 1101.0025 + 8058.2530.001
Download STEP - 1101.0025 + 8058.2530.002
Download STEP - 1101.0025 + 8058.2540.001
Download STEP - 1101.0025 + 8058.2540.002
Download STEP - 1101.0025 + 8058.2550.002
Download STEP - 1101.0025
Download STEP - 1101.0032 + 8058.3210.002
Download STEP - 1101.0032 + 8058.3220.001
Download STEP - 1101.0032 + 8058.3220.002
Download STEP - 1101.0032 + 8058.3230.001
Download STEP - 1101.0032 + 8058.3230.002
Download STEP - 1101.0032 + 8058.3240.001
Download STEP - 1101.0032 + 8058.3240.002
Download STEP - 1101.0032 + 8058.3250.002
Download STEP - 1101.0032
Download STEP - 1101.0040 + 8058.4010.002
Download STEP - 1101.0040 + 8058.4020.001
Download STEP - 1101.0040 + 8058.4020.002
Download STEP - 1101.0040 + 8058.4030.001
Download STEP - 1101.0040 + 8058.4030.002
Download STEP - 1101.0040 + 8058.4040.001
Download STEP - 1101.0040 + 8058.4040.002
Download STEP - 1101.0040 + 8058.4050.002
Download STEP - 1101.0040

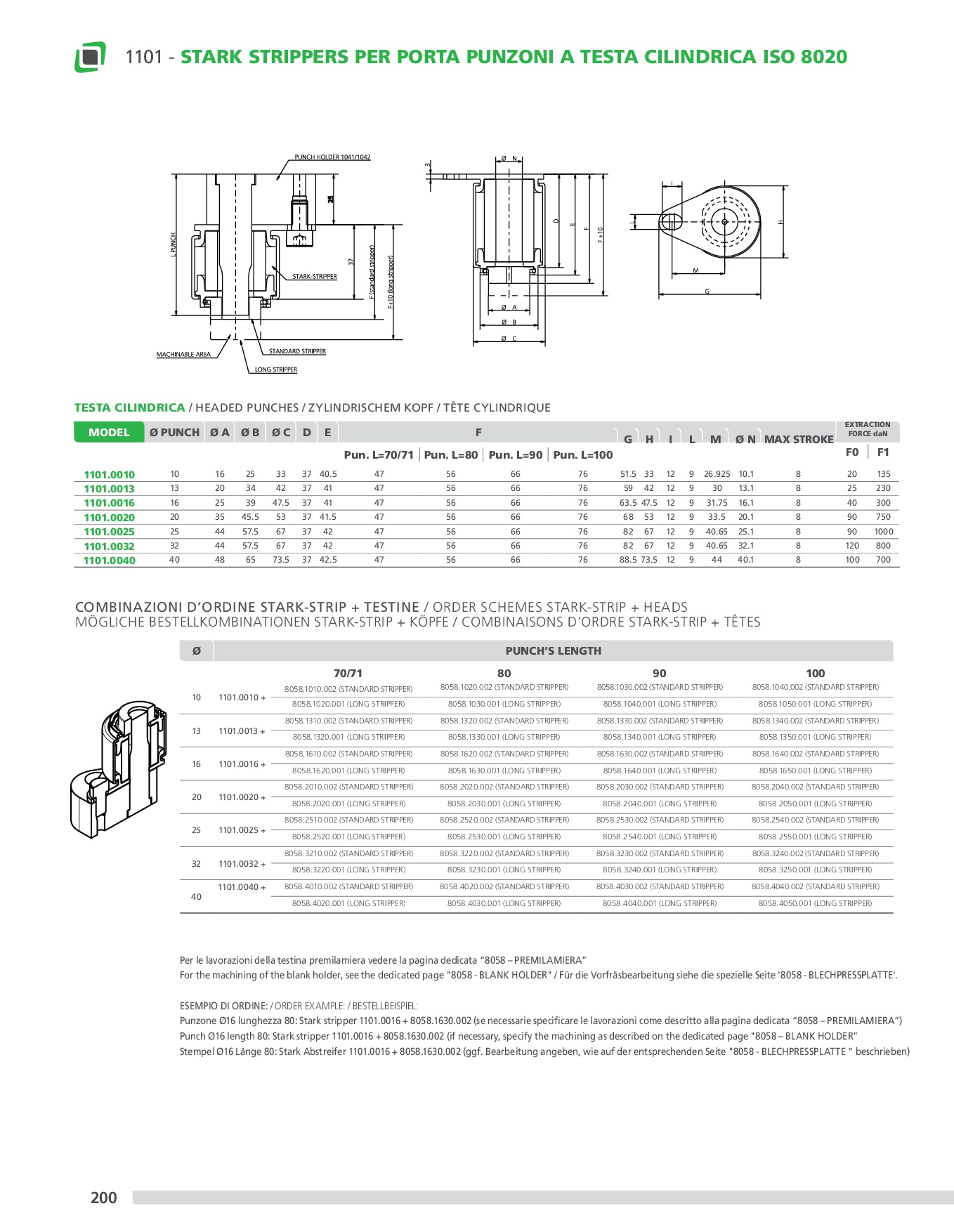

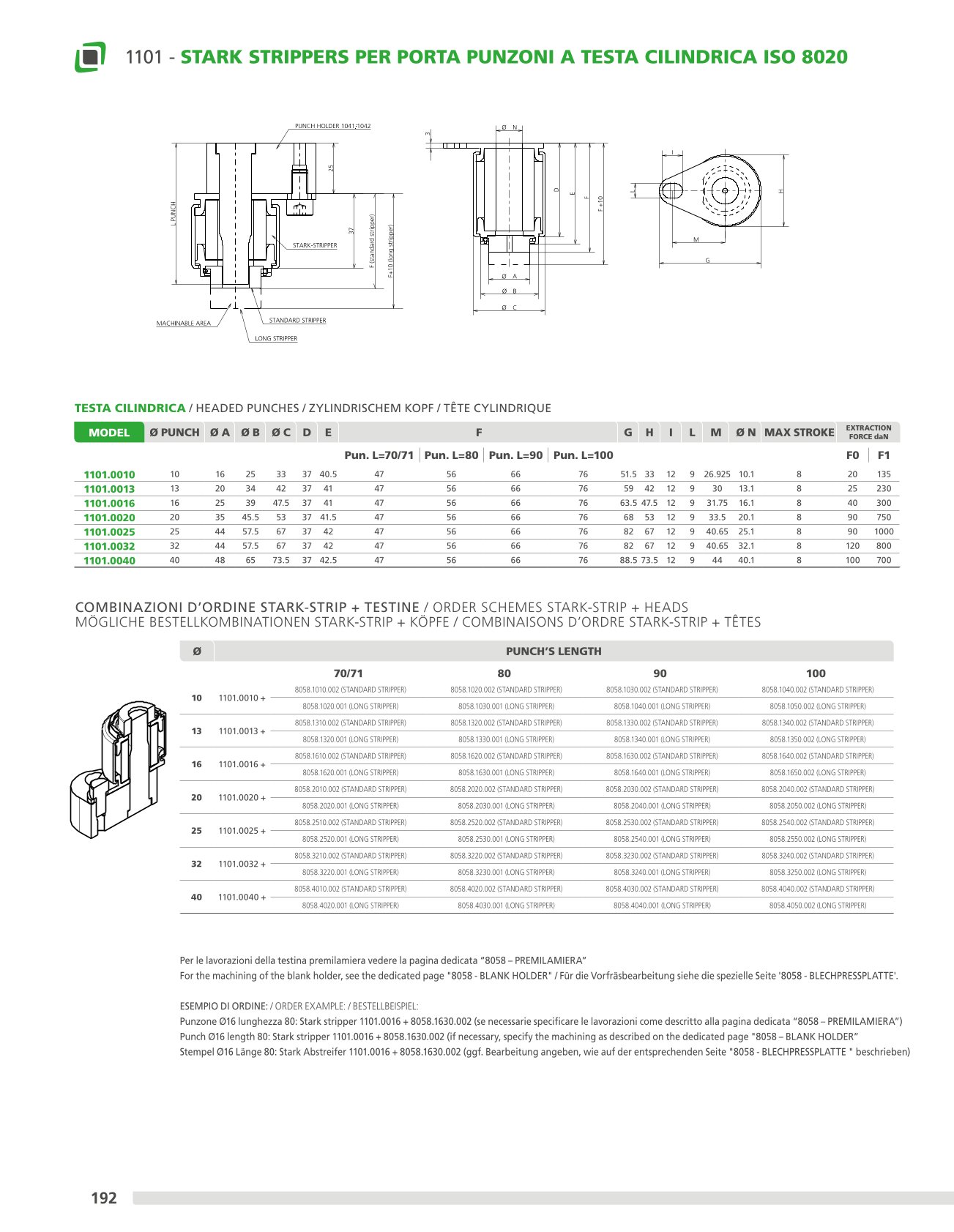

Download scheda tecnica PDF
