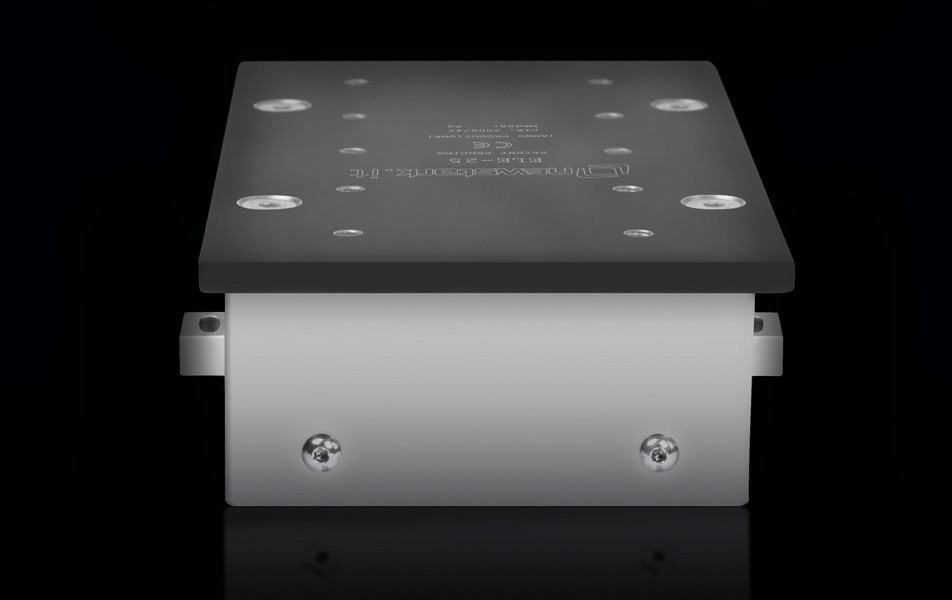

Electrical ejectors

e: 1552

Material conveyor mechanism trough electrical vibrant system, with small dimensions, applicable even in evacuation uneasy situations.
Depending on application requirements, by mean of a slide, different sizes of plates can be applied. The ejector operation is guaranteed also in horizontal position. The system is activated trough electrical connection 24 V. The power supply control unit, connected to the ejector through a watertight connector, is equipped with a STANDBY warning light, an ON/OFF switch, a potentiometer to adjust the speed and a safety relay that avoids engine damages.

Jsi v: Produkty - Electrical ejectors

What are you looking for?

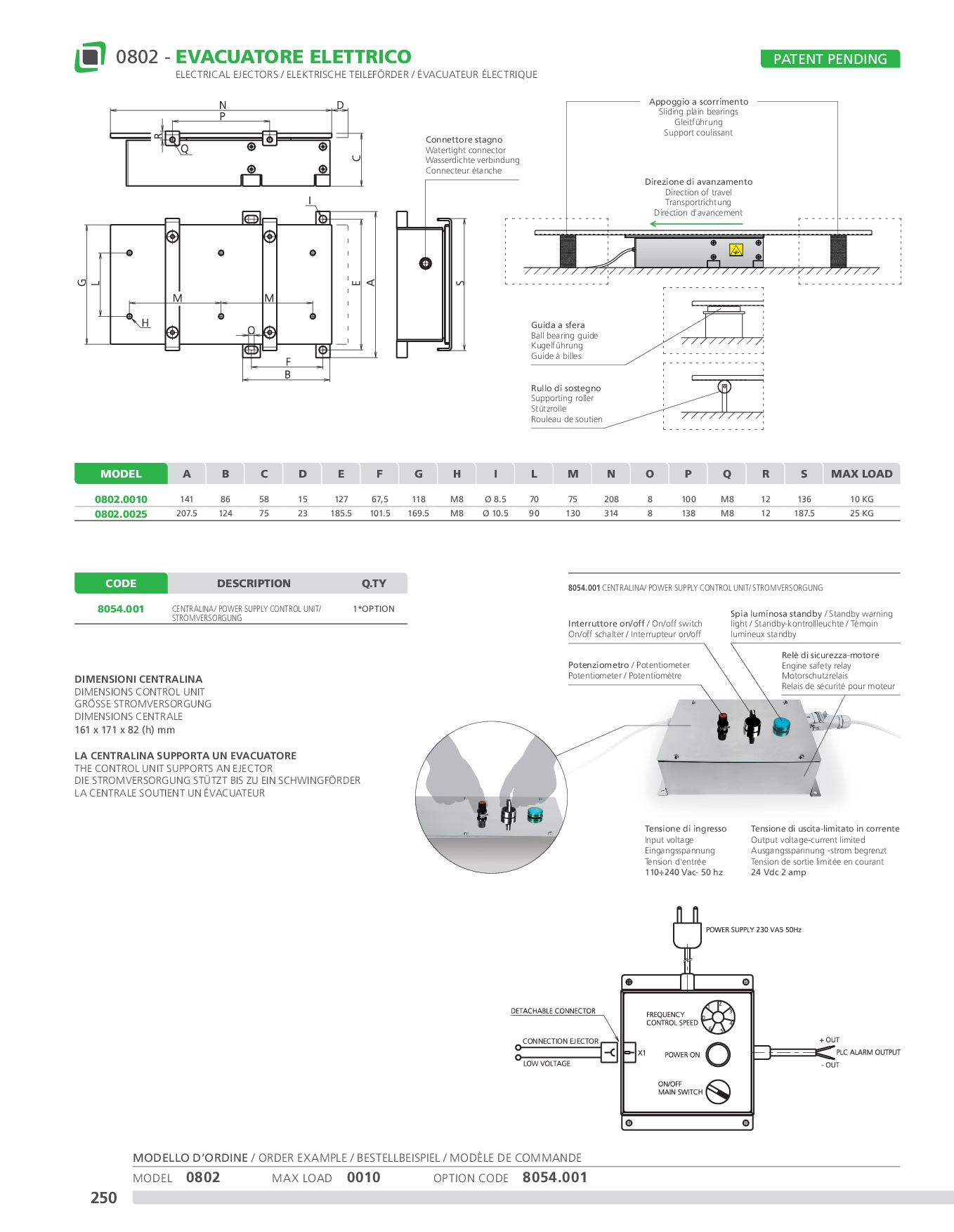

Control unit electrical diagram.pdf
Safety Manual Electrical Ejector.pdf
